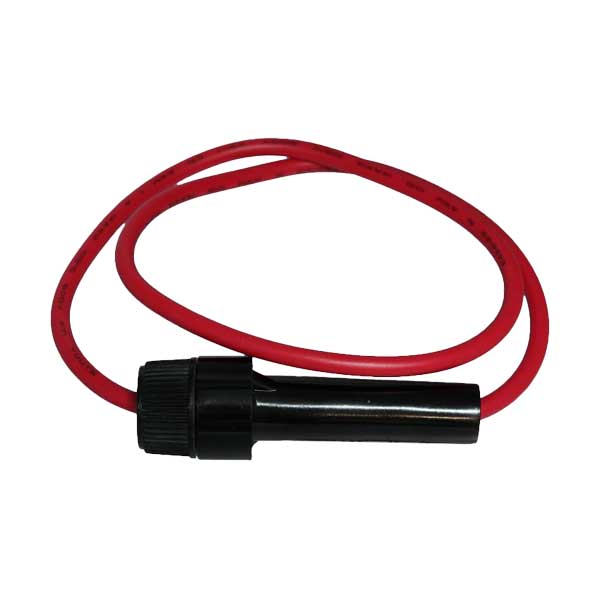

OptiFuse In-Line Fuse Holder for 6.3x32mm UL 12AWG 30A (LPA-24B-12R-BP)
The OptiFuse LPA-24B-12R is a reliable in-line fuse holder designed for 6.3mm x 32mm (¼" x 1¼") glass or ceramic fuses. Suitable for electrical systems, it supports both AC (up to 250VAC) and DC (up to 32VDC) applications with a 30A current rating. It features 12 AWG wire leads and a phenolic body rated UL 94V-1 for flame resistance. Ideal for wire harness assemblies in electronic devices, appliances, and lighting circuits, this UL-recognized holder offers nickel-plated brass contacts and a bayonet cap for secure fuse installation. Dimensions are compact at 0.69 x 0.69 x 2.2 inches.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
OptiFuse In-Line Fuse Holder for 6.3x32mm UL 12AWG 30A (LPA-24B-12R-BP)
OptiFuse In-Line Fuse Holder for 6.3x32mm UL 12AWG 30A (LPA-24B-12R-BP)
The OptiFuse LPA-24B-12R is a reliable in-line fuse holder designed for 6.3mm x 32mm (¼" x 1¼") glass or ceramic fuses. Suitable for electrical systems, it supports both AC (up to 250VAC) and DC (up to 32VDC) applications with a 30A current rating. It features 12 AWG wire leads and a phenolic body rated UL 94V-1 for flame resistance. Ideal for wire harness assemblies in electronic devices, appliances, and lighting circuits, this UL-recognized holder offers nickel-plated brass contacts and a bayonet cap for secure fuse installation. Dimensions are compact at 0.69 x 0.69 x 2.2 inches.
Original: $4.19
-65%$4.19
$1.47Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The OptiFuse LPA-24B-12R is a reliable in-line fuse holder designed for 6.3mm x 32mm (¼" x 1¼") glass or ceramic fuses. Suitable for electrical systems, it supports both AC (up to 250VAC) and DC (up to 32VDC) applications with a 30A current rating. It features 12 AWG wire leads and a phenolic body rated UL 94V-1 for flame resistance. Ideal for wire harness assemblies in electronic devices, appliances, and lighting circuits, this UL-recognized holder offers nickel-plated brass contacts and a bayonet cap for secure fuse installation. Dimensions are compact at 0.69 x 0.69 x 2.2 inches.
