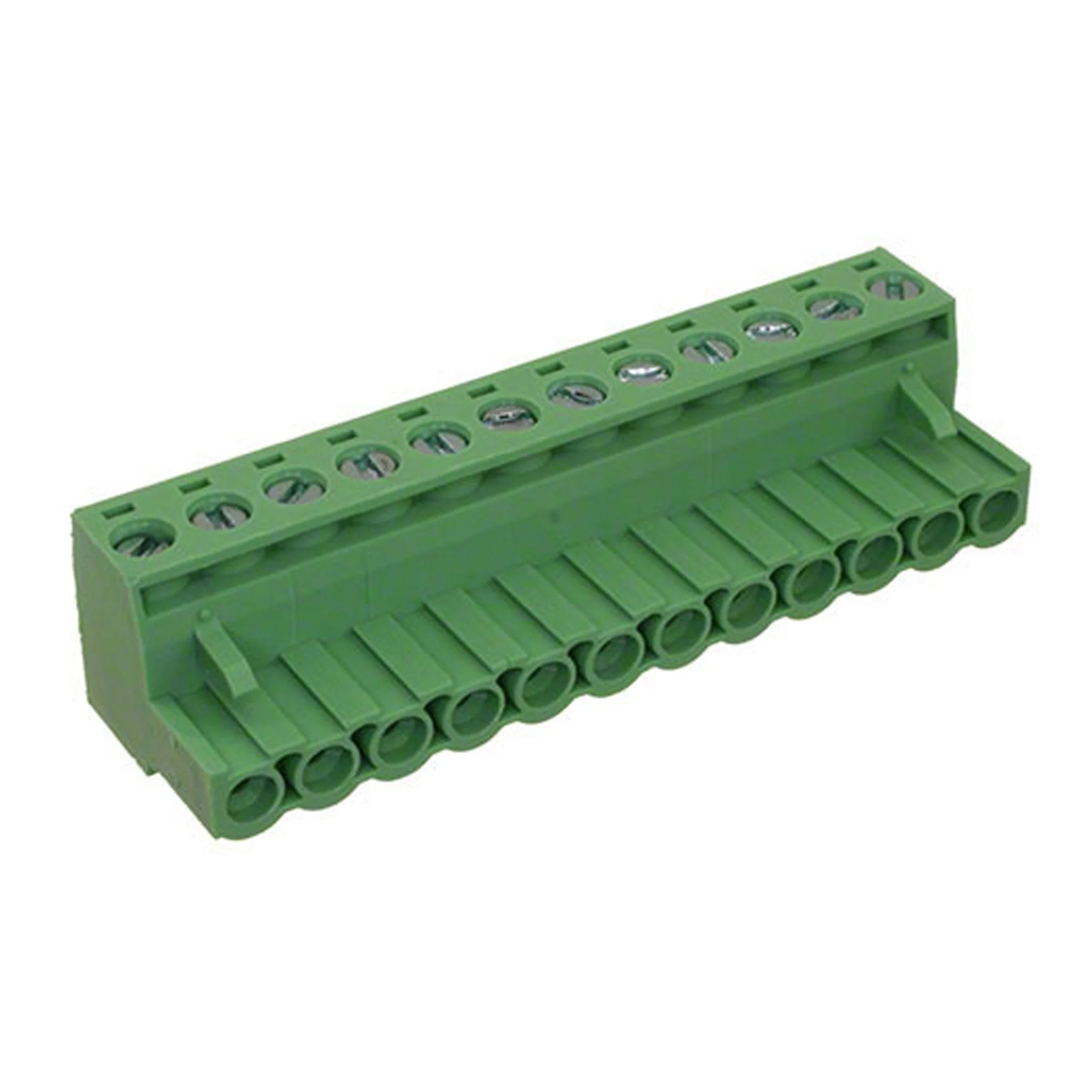

Philmore LKG 13-2612 12-Position Horizontal Female Pluggable Terminal Block
The Philmore LKG 13-2612 is a 12-Position Horizontal Female Pluggable Terminal Block with a rating of 15A @ 300V. It is UL Listed and CSA Certified, and has a center spacing of .2ā (5.08 mm). The wire size ranges from #12 to 22 AWG and the housing material is Type 6/6 Polyamide 94VO. With screw size of 3 mm X 5 mm Zinc Plated Steel, the terminal block has a length of 60.96 mm. Operating temperatures can range from -40oC (-40oF) to 105oC (221oF) and it features a sturdy latch to prevent accidental disconnect. The wire entry can be made through the rear or in a horizontal (in line) configuration to the mating connector. These connectors are designed for quick and easy wire-to-wire or wire-to-board connections that can be easily unplugged when needed.
Product Information
Product Information
Shipping & Returns
Shipping & Returns


Philmore LKG 13-2612 12-Position Horizontal Female Pluggable Terminal Block
Philmore LKG 13-2612 12-Position Horizontal Female Pluggable Terminal Block
The Philmore LKG 13-2612 is a 12-Position Horizontal Female Pluggable Terminal Block with a rating of 15A @ 300V. It is UL Listed and CSA Certified, and has a center spacing of .2ā (5.08 mm). The wire size ranges from #12 to 22 AWG and the housing material is Type 6/6 Polyamide 94VO. With screw size of 3 mm X 5 mm Zinc Plated Steel, the terminal block has a length of 60.96 mm. Operating temperatures can range from -40oC (-40oF) to 105oC (221oF) and it features a sturdy latch to prevent accidental disconnect. The wire entry can be made through the rear or in a horizontal (in line) configuration to the mating connector. These connectors are designed for quick and easy wire-to-wire or wire-to-board connections that can be easily unplugged when needed.
Original: $17.49
-65%$17.49
$6.12Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Philmore LKG 13-2612 is a 12-Position Horizontal Female Pluggable Terminal Block with a rating of 15A @ 300V. It is UL Listed and CSA Certified, and has a center spacing of .2ā (5.08 mm). The wire size ranges from #12 to 22 AWG and the housing material is Type 6/6 Polyamide 94VO. With screw size of 3 mm X 5 mm Zinc Plated Steel, the terminal block has a length of 60.96 mm. Operating temperatures can range from -40oC (-40oF) to 105oC (221oF) and it features a sturdy latch to prevent accidental disconnect. The wire entry can be made through the rear or in a horizontal (in line) configuration to the mating connector. These connectors are designed for quick and easy wire-to-wire or wire-to-board connections that can be easily unplugged when needed.
